AMBIENT AIR QUALITY MONITORING SYSTEM (BMC APPROVED)

About AMBIENT AIR QUALITY MONITORING SYSTEM (BMC APPROVED)

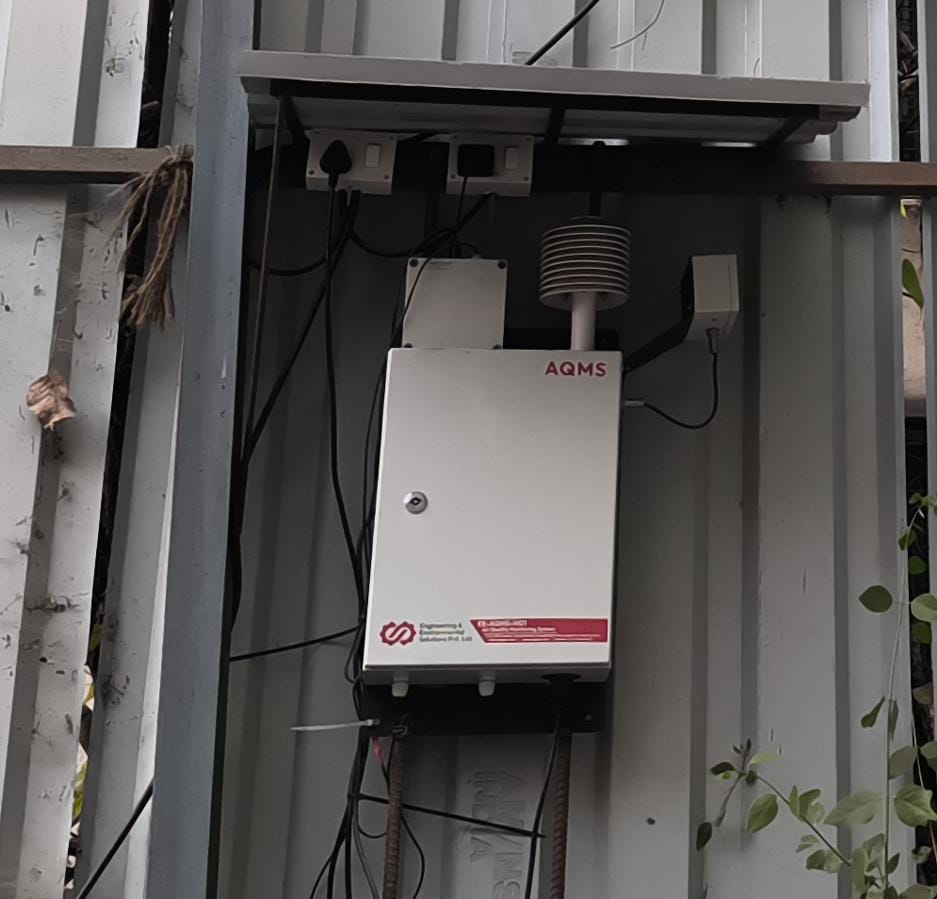

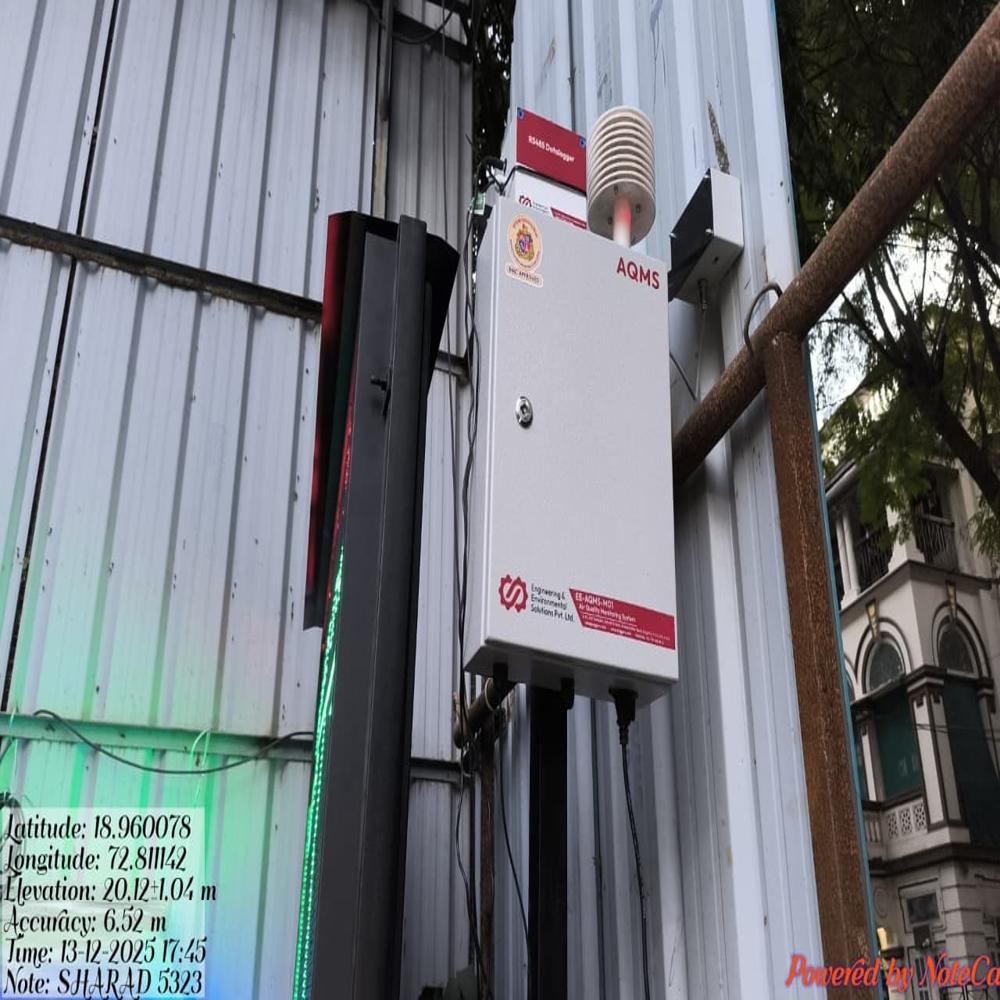

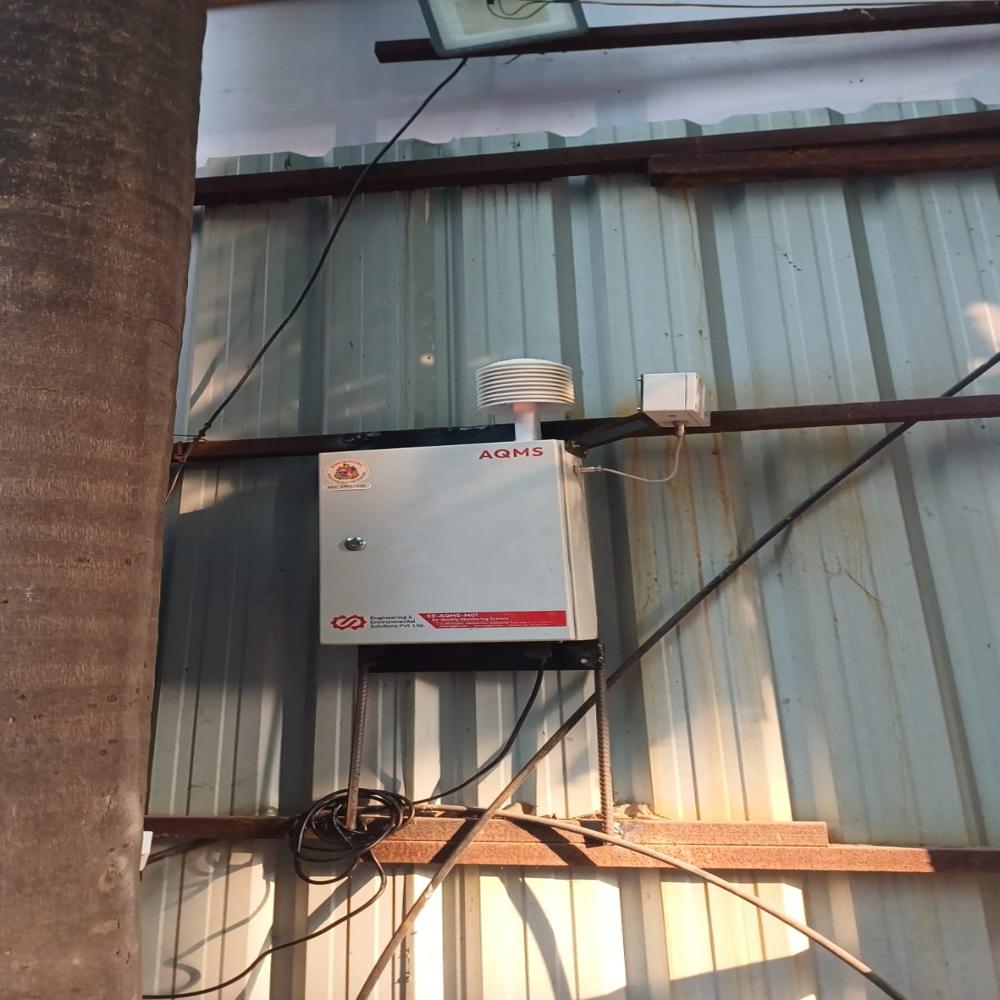

Ambient Air Quality Monitoring System

Model No: - AAQMS M01

Parameter: -

                PM 2.5

                PM 10

                Temperature

                Relative humidity\

                AQI

Sensor Specifications: -

                Particulate sensor:

Principle: Light Scattering (Particulates,

PM2.5, PM10)

Range: PM10: 0-1,000 ug/m3 PM2.5: 0-500ug/m3

Resolution: PM10: 1 ug/m3 PM2.5: 1 ug/m3

                Air temperature:

Range- negative 50to +70 degree Celsius

Accuracy - positive / negative 0.3 degree Celsius

                Relative Humidity:

Range - 0 to 100%;

Accuracy - positive / negative 3%

Specifications: -

                Measurement: Simultaneous for all parameters

                Accuracy: +- 5% FS for all parameters

                Response Time: T90 < 30 sec

                PC Interface: RS232 or USB

                Software: Windows compatible. Data directly opens in

MS Excel.

                Display: 3.5 inch (Touch Display)

                Running Modes: Survey or Recording (with location id & date-time stamps)

                Recording Interval: Programmable with options of 5, 15 and 30 mins

                Operating Modes: Wall mounted

                Cloud Server accessibility

Digital Display System DMD Display Board Environmental Monitoring for Public Awareness View with Line Display Board Display Size 3 X 4 Feet,

Visibility 80-100 meters

Multi Colours up-to 70 meters Dust Proof & Water Proof Facility Provided. Data capture from software GPRS base. Dust Proof Casing and Water Proof Panel Computer is needed

Warranty: 1 year

Make: Engineering and Environmental Solutions Pvt Ltd.

The following data will display.

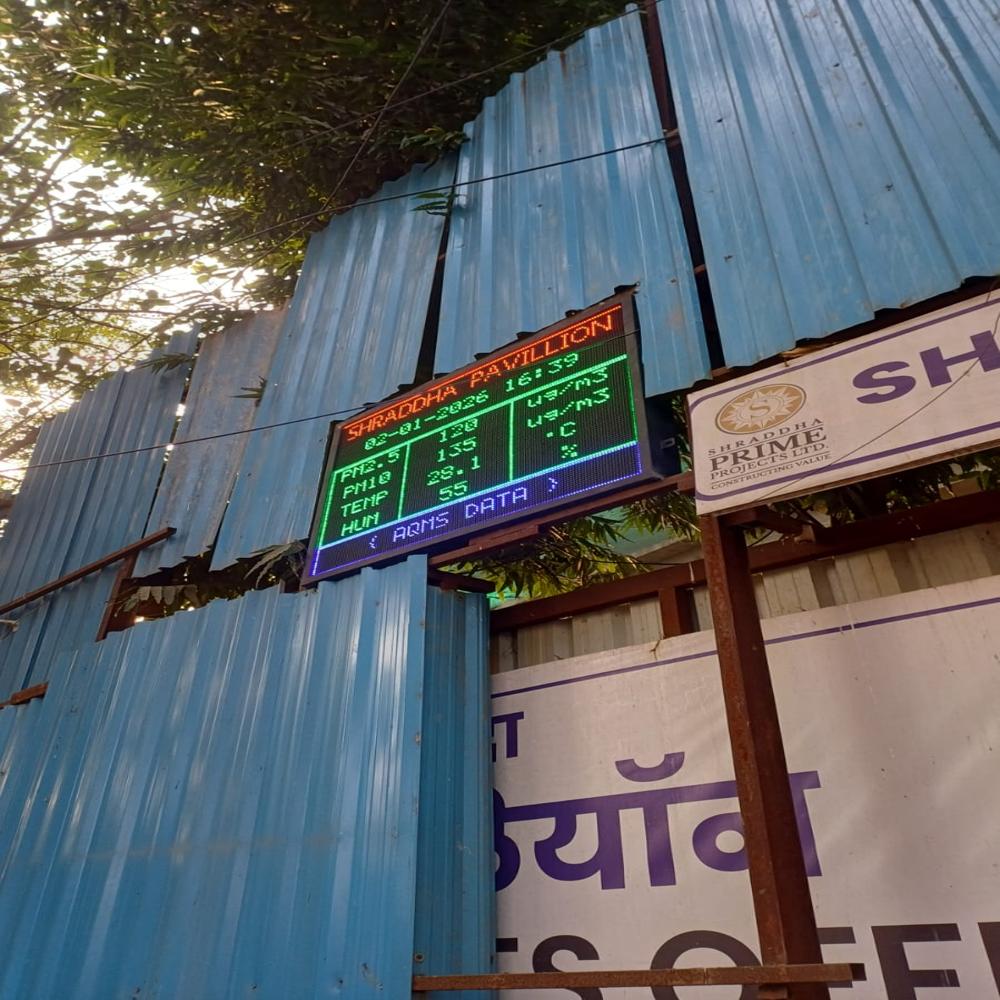

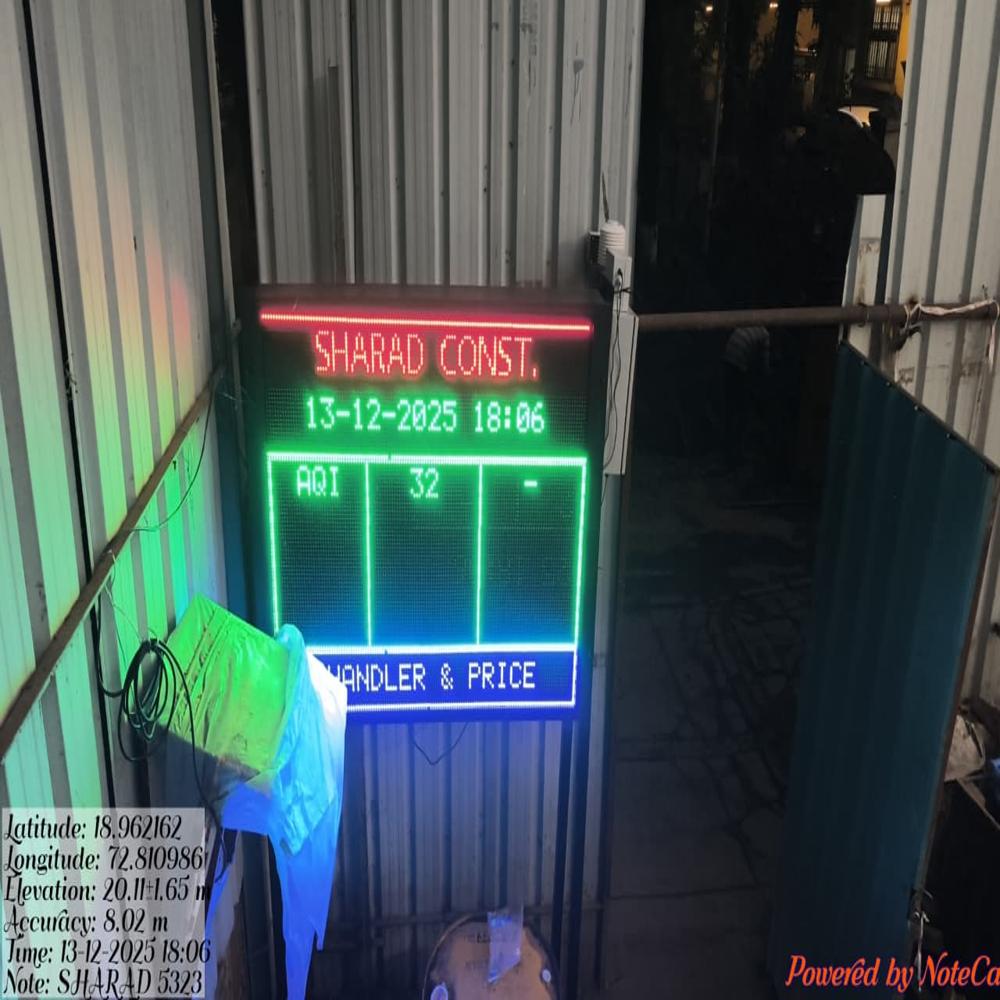

The details of the Environment Display Board

1. P-10-line outdoor display with Minimum 8 Lines

2. The display board body is in black colour

3. Displaying Multi Colours

4. Power Supply 230VAC, 50Hz

5. Display through the P.C base.

6. All data will send through standard

software/technology.

7. The display board is Water and dustproof.

8. Letter clear visible distance up to 100 meters in Day and Night.

9. Character Size programmable 80MM (Min).

10. Display board ambient temp is 55

* Civil work and Stabilized power supply or frame cost will be in client scope Proper earthing will be in industry scope
